ここから先 6 and 1

IN STOCK and shipping now - thanks for your patience!

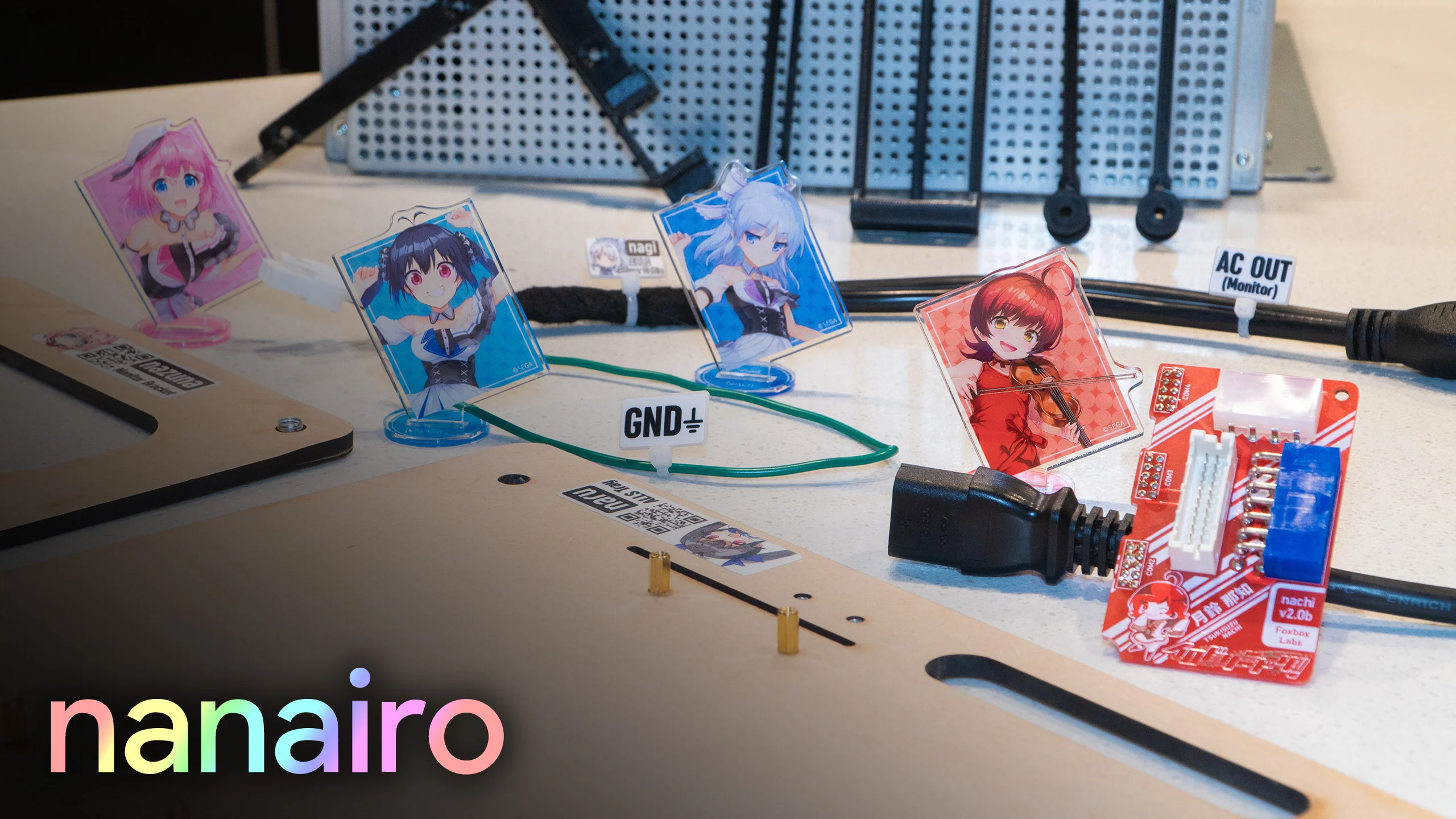

nanairo is a complete kit that includes cables, brackets, and necessary hardware to upgrade your Chunithm cabinet from older versions to NEW. nanairo is divided into four components:

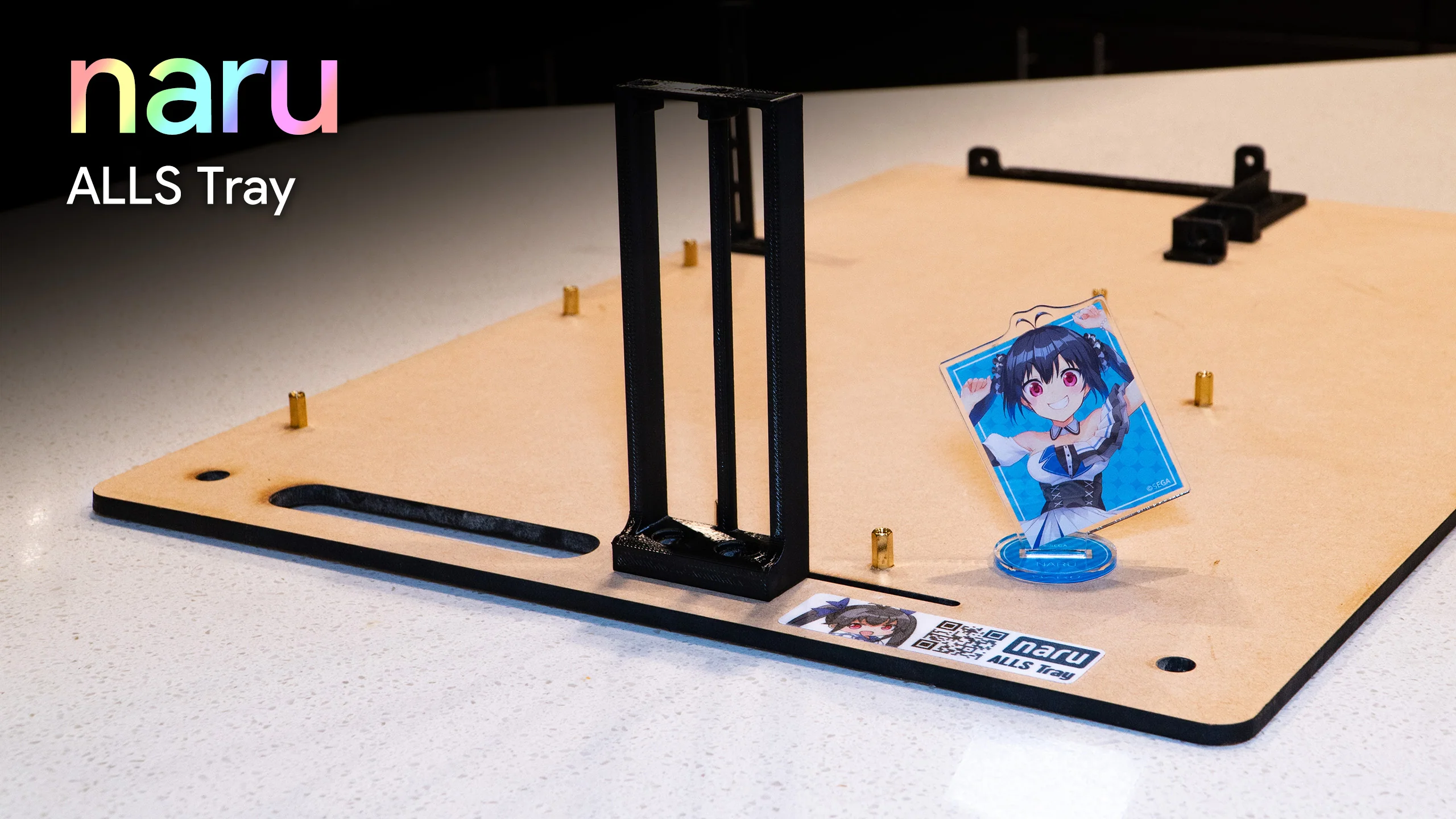

naru - a lively tray for mounting the components of an ALLS PC to easily and securely fit inside your cabinet

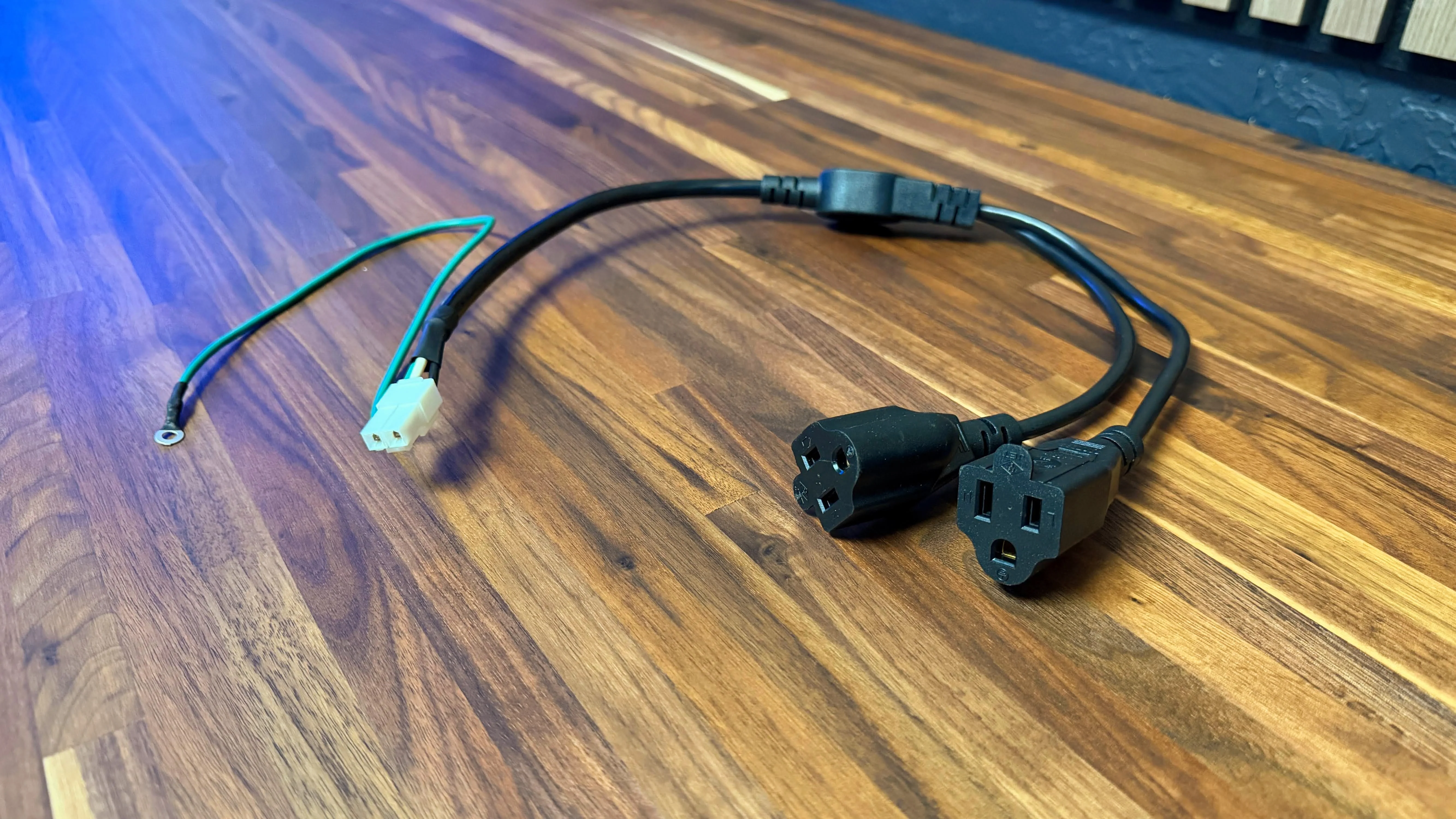

nagi - a confident harness to provide AC power to your replacement PC and monitor

nachi - a smug PCB to adapt the legacy serial connections and provide DC power to other components in your cabinet

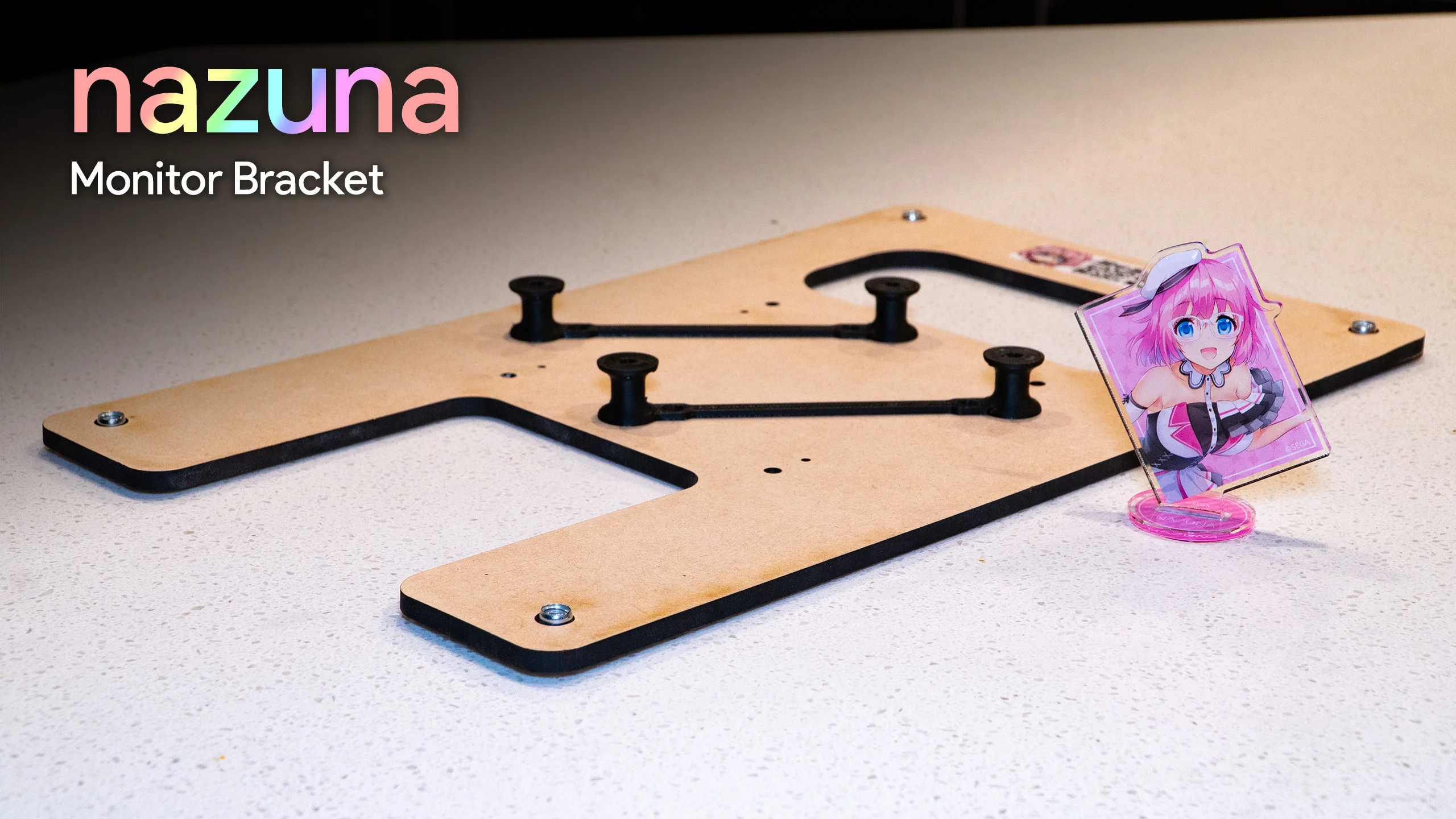

nazuna - a haughty bracket and spacers for seamlessly mounting a replacement high refresh rate display in your cabinet

In addition to nanairo, you will need:

An ALLS PC (any except 1st gen MX should be powerful enough)
An IO4 board (837-15257-01, 837-15257-02, or 837-15257-91)
LG 32GN50T, 32GN50R, 32GN500, or 32GN550 (optional for 120hz)
- Note: these are becoming very hard to find and are discontinued. You either have to gamble with used listings, or suitable new alternatives all are 1440p - user reports say scaling issues are minimal/negligible so those unfortunately might be your best bet at the moment.
- Alternatives:
  - LG 32GN600, 32GN63T, 32GP750, or similar
    - Hard to find new, will need to buy refurb on eBay or similar. Will fit without issues.
  - Samsung G50D
    - Fits easily, but requires longer screws and spacers, will test and offer if this becomes the norm. G55 will NOT fit. G50F untested.
Right-angle DisplayPort cable (or very small headed HDMI cable, to clear bracket)
One standard PC power cable
Tools: Philips screwdriver, security T20 driver, 7mm and 10mm sockets

Take a peek at the install guide for more info, or feel free to ask questions in your favorite Mythical chat room.

Files for naru and nazuna will be made open source shortly.

IN STOCK and shipping! For now, this kit will ship to USA only. I will open up to international orders soon.

Arcade

Custom eAmuse / IC Card Decal

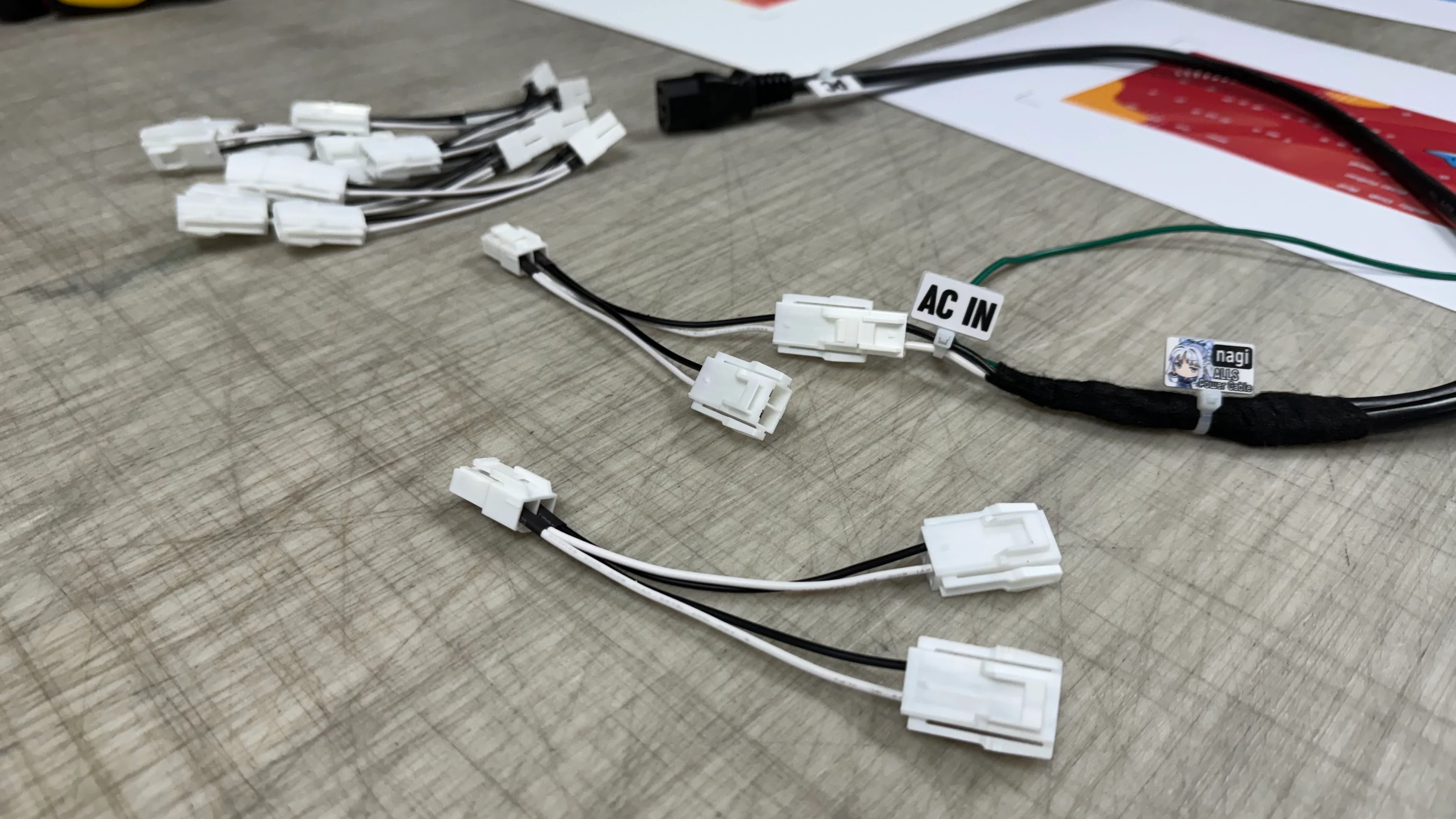

Chunithm AC Power Splitter
